Safe excavation requires proper shoring. Whether you're digging a basement next to an existing building, installing utilities in unstable ground, or supporting a deep foundation excavation, Rock Supremacy designs and installs shoring systems that protect workers, adjacent structures, and your project timeline. As experienced shoring contractors, we provide temporary shoring for construction phases and permanent earth retention systems that become part of the finished structure. Our design-build capability means one team handles engineering, installation, and removal—reducing coordination headaches and keeping your project on schedule.

500K+
Sq Ft Installed
75 ft
Max Depth
48 hr
Emergency Response
OSHA
Compliant
Overview

Complete Shoring & Earth Retention Services

Shoring protects your excavation, your workers, and neighboring properties. The right shoring system depends on excavation depth, soil conditions, groundwater, adjacent structures, and whether the retention needs to be temporary or permanent.

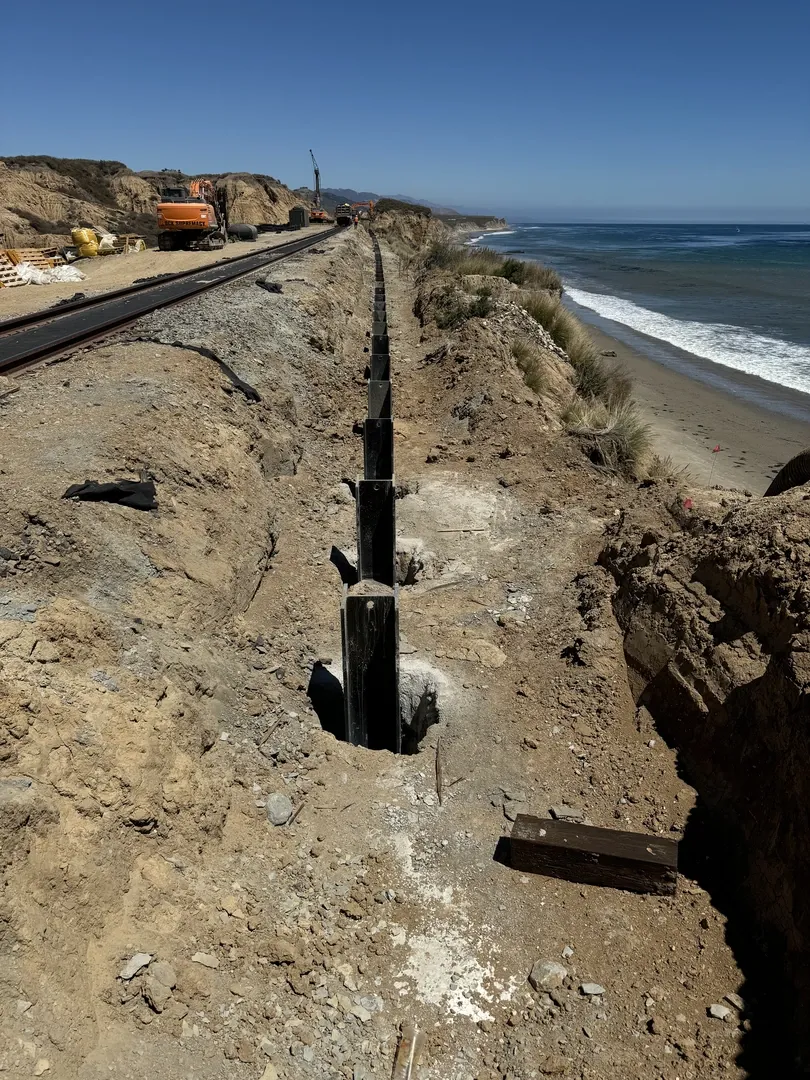

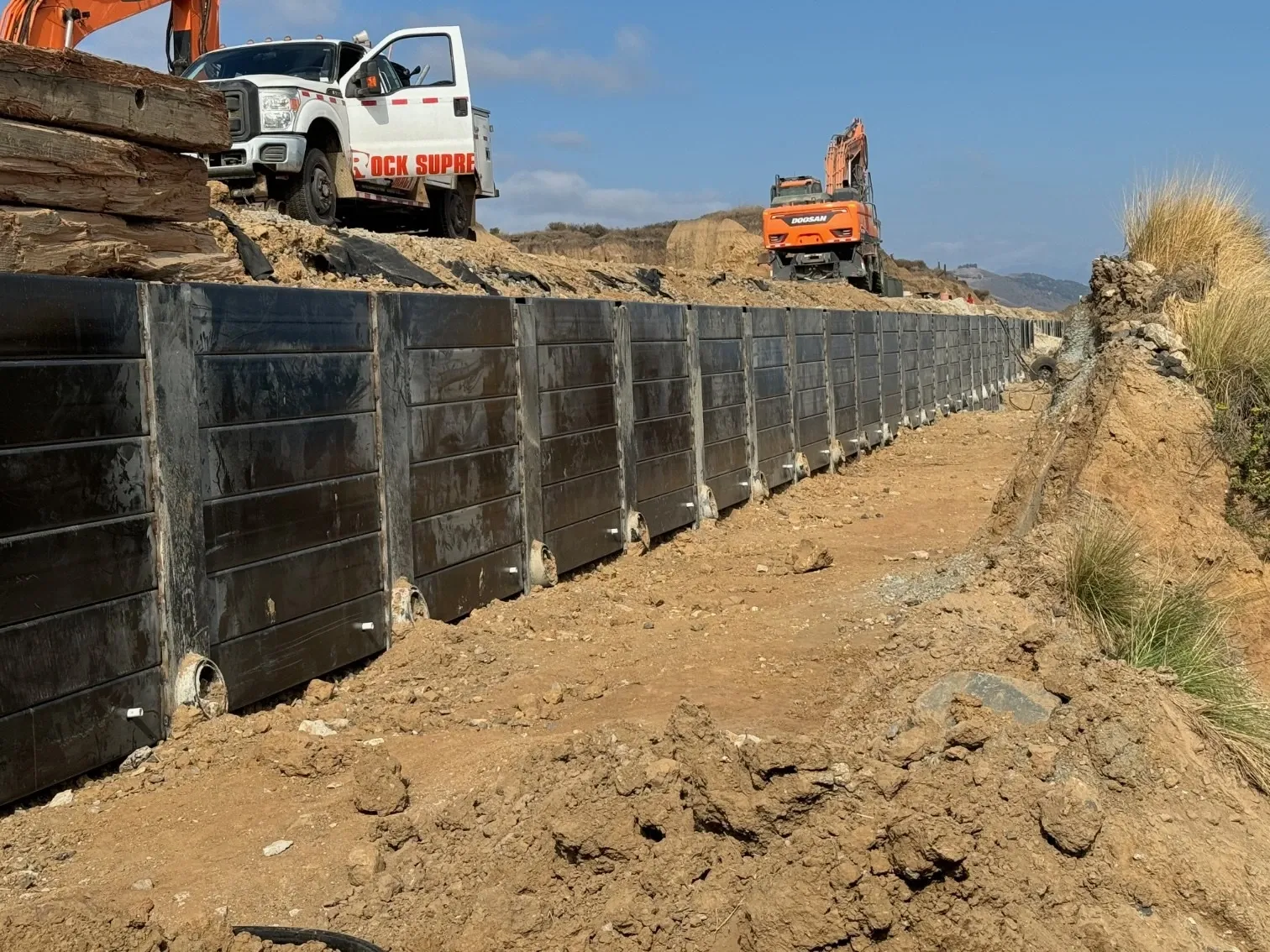

Soldier pile walls are our most common shoring system for urban excavations. Steel H-piles are driven or drilled at regular spacing, then wood or concrete lagging is installed between them as excavation proceeds. For deeper excavations, we add tieback anchors to resist lateral earth pressure.

Soil nail walls provide an economical alternative that becomes a permanent structure. As excavation proceeds, we drill and grout reinforcing bars into the retained soil, then apply shotcrete facing. Soil nailing is typically 25-50% less expensive than soldier pile walls.

Sheet pile walls work well for waterfront construction and excavations below the water table. Interlocking steel sheets create a continuous barrier that resists both soil and water pressure.

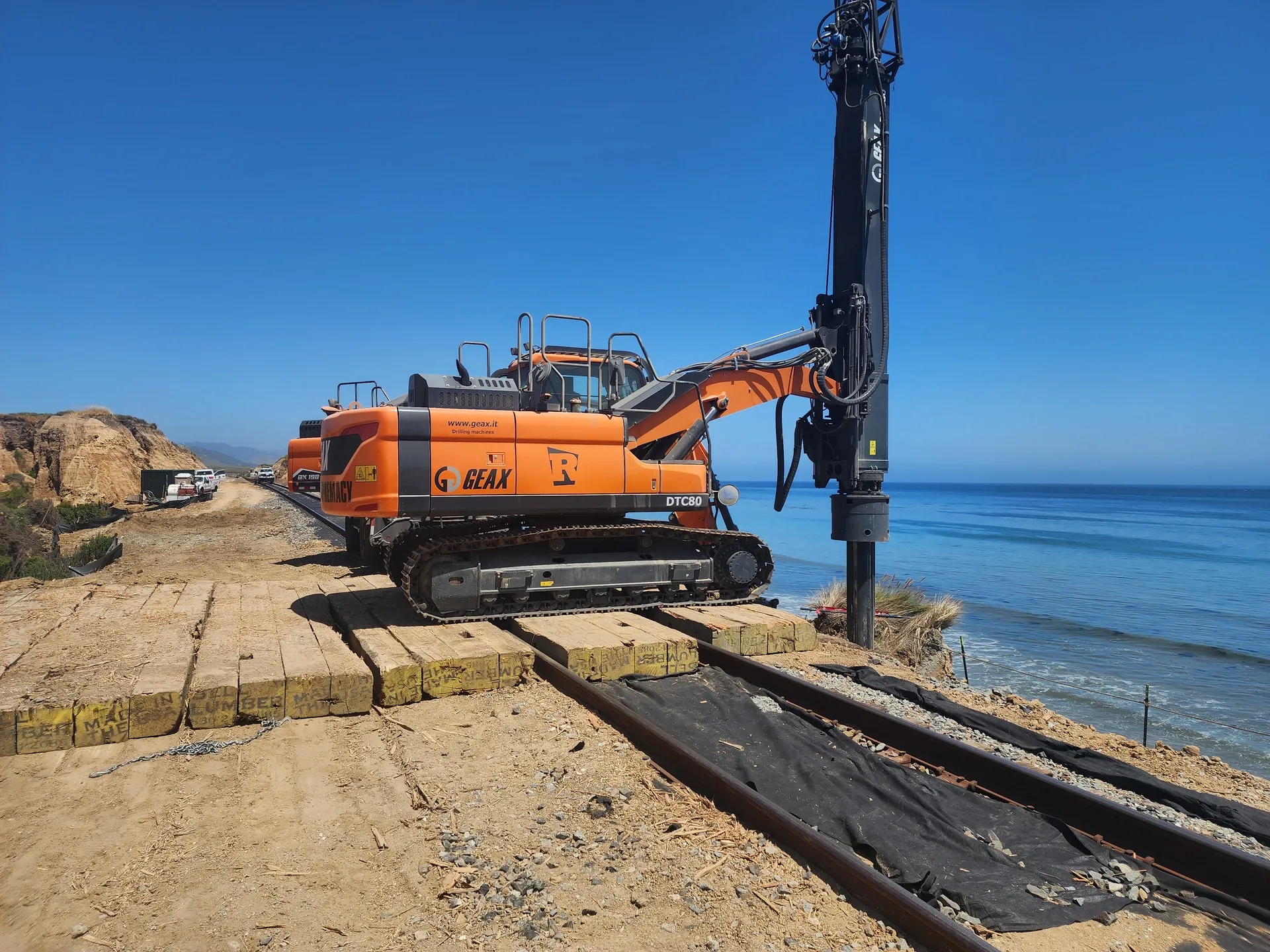

For excavations adjacent to sensitive structures, we provide micropile underpinning to support existing foundations before excavation begins. Real-time monitoring tracks any movement during construction.

Temporary shoring is removed after construction is complete. Permanent earth retention systems—including soil nail walls, anchored walls, and MSE walls—become part of the finished structure with design lives of 75-100 years.

Shoring & Excavation Support
Equipment

Tools & Technology

We deploy specialized equipment matched to project requirements and site conditions.

Pile driving and drilling equipment
Vibratory and impact hammers
Track-mounted drill rigs
Shotcrete pumps and robotic arms
Hydraulic anchor stressing equipment
Dewatering pumps and wellpoint systems
Techniques

How We Do It

Proven methods and specialized techniques that deliver reliable, long-lasting results.

Why Us

Why Choose Rock Supremacy for Shoring

Design-build capability from engineering through installation
Full range of shoring systems for any condition
Experienced crews who understand construction sequencing
Fast mobilization for emergency shoring needs
Adjacent structure protection with monitoring and underpinning
Integrated shoring, anchoring, and shotcrete teams
Clear communication with general contractors and owners
Competitive pricing through efficient installation methods

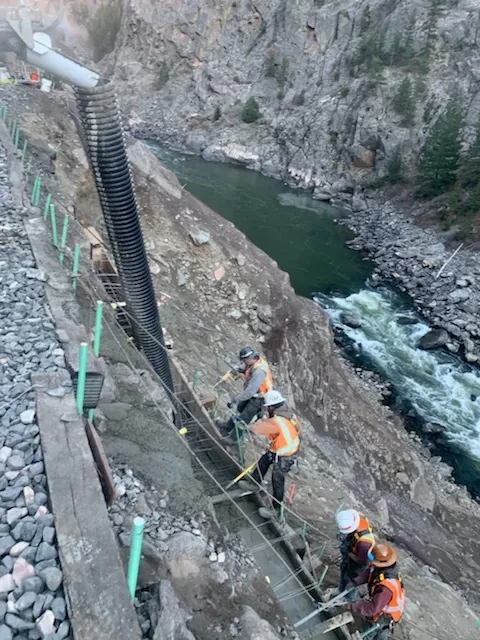

Shoring & Excavation Support project
Trusted by
Industry Leaders
Gallery

Our Work in Action

Questions

Shoring & Excavation Support FAQ

The right shoring system depends on excavation depth, soil conditions, groundwater, adjacent structures, and project schedule. Soldier pile walls work well for most urban excavations. Soil nailing is economical when the wall can become permanent. Sheet piles suit waterfront or high-groundwater conditions. We evaluate your site and recommend the most cost-effective system for your specific conditions.
We regularly install shoring for excavations up to 75 feet deep. Deeper excavations require multiple levels of tiebacks or internal bracing. Our engineering team designs shoring systems for any depth, analyzing soil conditions and adjacent structure requirements to ensure safe, efficient construction.
Yes. We specialize in excavation support adjacent to occupied buildings. Our approach includes pre-construction surveys, foundation underpinning where needed, vibration monitoring, and real-time movement tracking. We coordinate closely with building owners and adjust our methods to minimize impacts.
Temporary shoring is removed after construction—basement walls are poured against it, then the shoring is extracted. Permanent shoring becomes part of the finished structure. Soil nail walls with architectural shotcrete facing are a common permanent system. Permanent shoring often costs less overall because there's no removal and the wall serves as the final structure.
Installation time depends on wall length, depth, and system type. A typical soldier pile wall for a single basement installs in 1-2 weeks. Larger excavations with multiple tieback levels may take several weeks. We coordinate with your construction schedule to ensure shoring is ready when you need to dig.
Yes. When excavations fail or adjacent structures are threatened, we mobilize emergency shoring crews within 48 hours. Our emergency services include temporary bracing, emergency soldier piles, and rapid soil nailing to stabilize dangerous situations before they worsen.
We provide integrated dewatering with our shoring systems. Options include wellpoints for shallow excavations, deep wells for significant groundwater, sump pumps for minor seepage, and sheet pile cutoff walls to block water flow. We design dewatering systems based on hydrogeological conditions to keep your excavation dry and stable.
We install and monitor inclinometers to track wall movement, survey points on adjacent structures, piezometers to track groundwater levels, and strain gauges on tiebacks and braces. Real-time monitoring allows us to respond quickly if conditions change during excavation.
